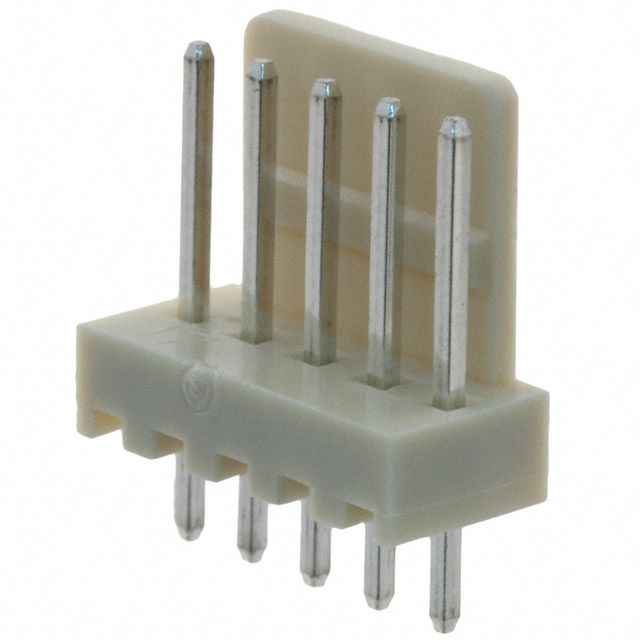

SWR25X-NRTC-S05-ST-BA
SWR25X-NRTC-S05-ST-BA
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR25X
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 1 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.299" (7.60mm)
Contact Length - Post : 0.134" (3.40mm)
Overall Contact Length : 0.559" (14.20mm)
Insulation Height : 0.449" (11.40mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Beige
Current Rating : 5A per Contact
Voltage Rating : 250V
Availability: 2988 in stock
