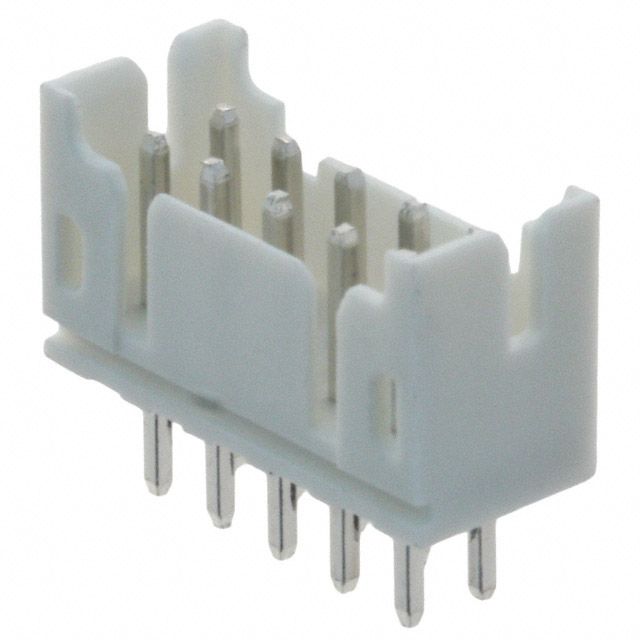

SWR204-NRTN-D05-ST-GA
SWR204-NRTN-D05-ST-GA
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SWR204
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.079" (2.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Detent Lock
Contact Length - Mating : -
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : -
Insulation Height : 0.256" (6.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -25°C ~ 85°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Gray
Current Rating : 3A per Contact
Voltage Rating : 50V
Availability: 2094 in stock
