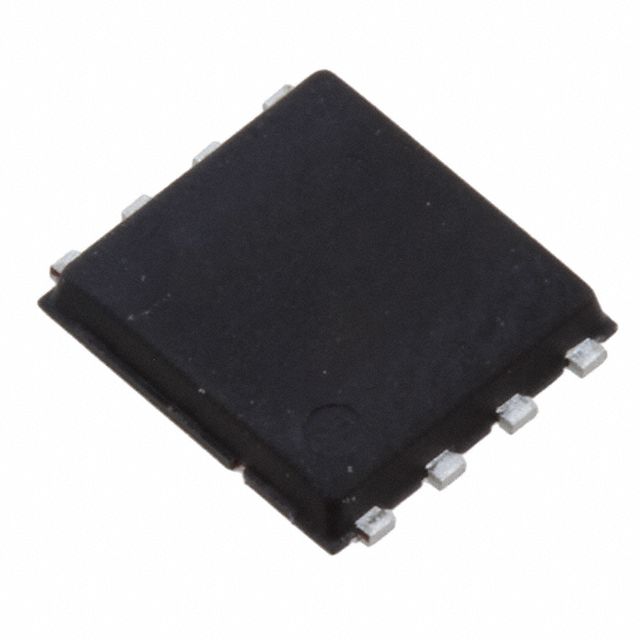

UPA2766T1A-E2-AY
UPA2766T1A-E2-AY
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 130A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.82 mOhm @ 39A, 4.5V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 257nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 10850pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.5W (Ta), 83W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-HVSON (5.4x5.15)
Package / Case : 8-PowerVDFN
Availability: 100 in stock
