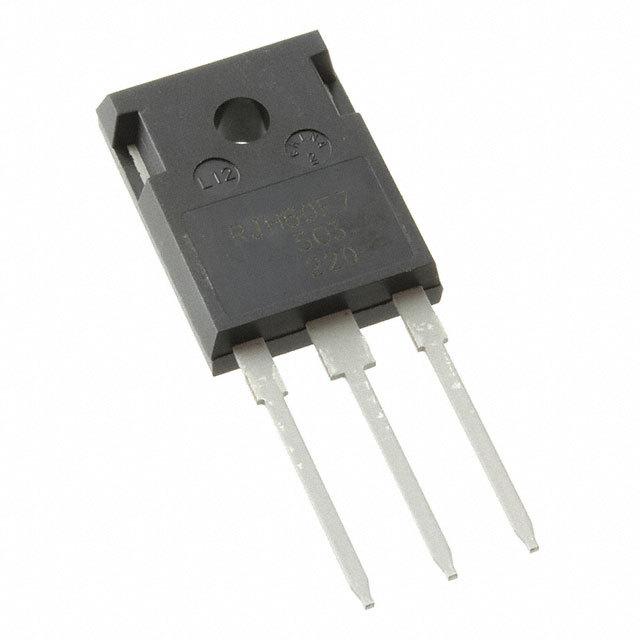

RJH65D27BDPQ-A0#T2
RJH65D27BDPQ-A0#T2
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.65V @ 15V, 50A
Power - Max : 375W
Switching Energy : 1mJ (on), 1.5mJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 20ns/165ns
Test Condition : 400V, 50A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Availability: 100 in stock
