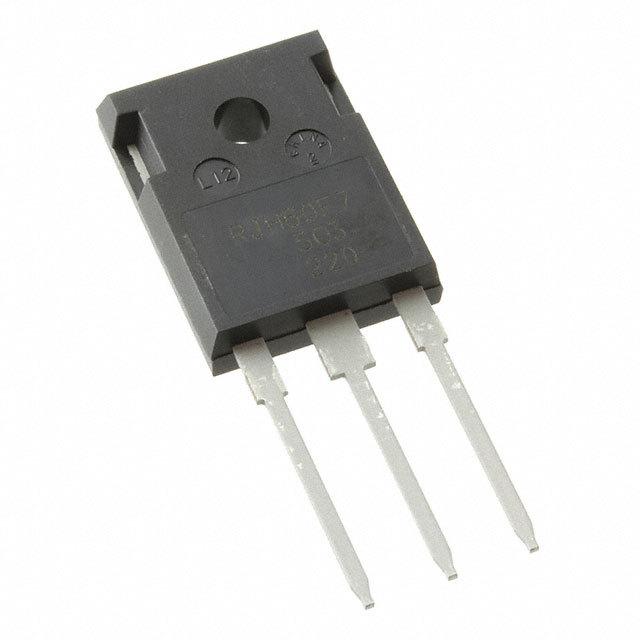

RJH60F6BDPQ-A0#T0
RJH60F6BDPQ-A0#T0
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 85A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 45A
Power - Max : 297.6W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 58ns/131ns
Test Condition : 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 25ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247A
Availability: 12 in stock
