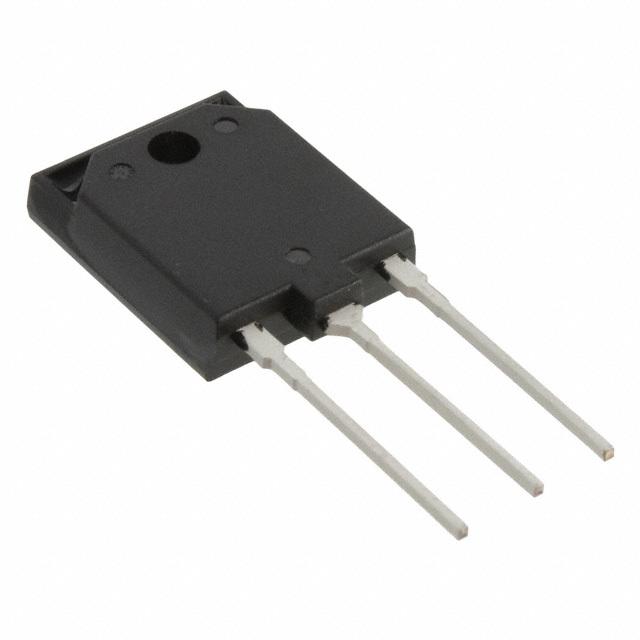

RJH60D7DPM-00#T1
RJH60D7DPM-00#T1
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 50A
Power - Max : 55W
Switching Energy : 1.1mJ (on), 600µJ (off)
Input Type : Standard
Gate Charge : 130nC
Td (on/off) @ 25°C : 60ns/190ns
Test Condition : 300V, 50A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PFM
Availability: 100 in stock
