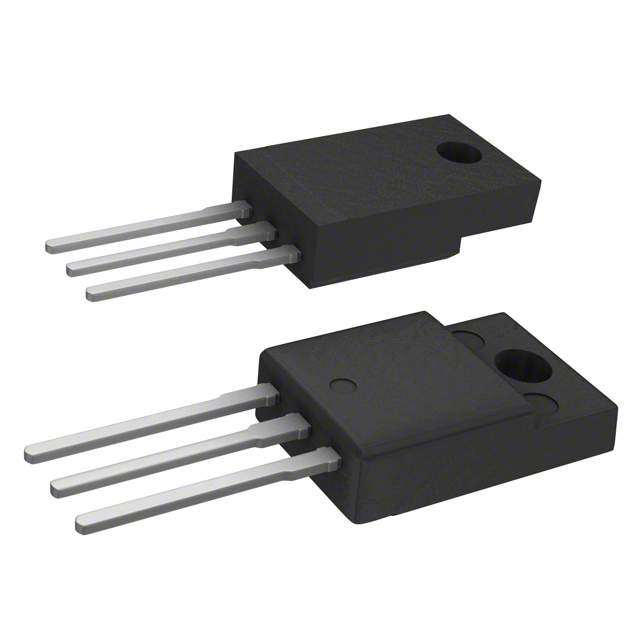

RJH60D1DPP-E0#T2
RJH60D1DPP-E0#T2
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 30W
Switching Energy : 100µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 13nC
Td (on/off) @ 25°C : 30ns/42ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Availability: 100 in stock
