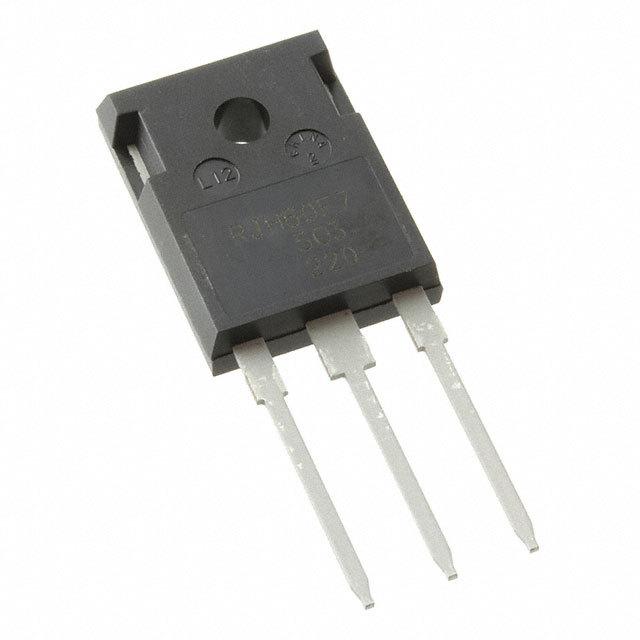

RJH1CV7DPQ-E0#T2
RJH1CV7DPQ-E0#T2
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 35A
Power - Max : 320W
Switching Energy : 3.2mJ (on), 2.5mJ (off)
Input Type : Standard
Gate Charge : 166nC
Td (on/off) @ 25°C : 53ns/185ns
Test Condition : 600V, 35A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Availability: 100 in stock
