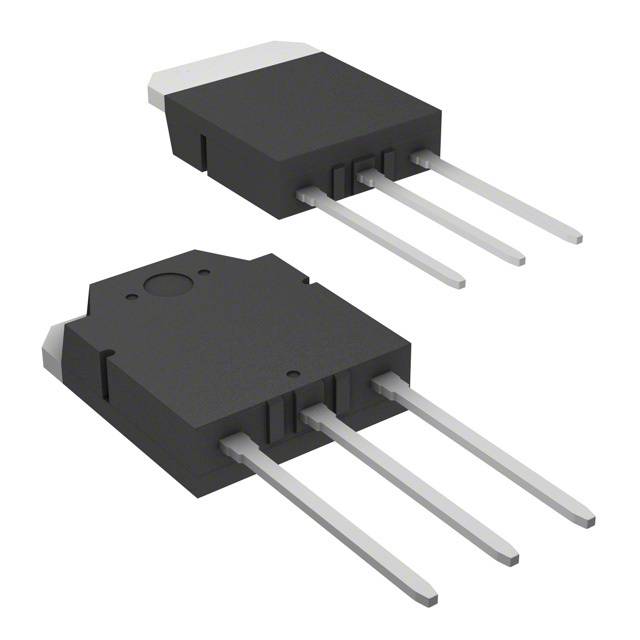

RJH1CV6DPK-00#T0
RJH1CV6DPK-00#T0
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 30A
Power - Max : 290W
Switching Energy : 2.3mJ (on), 1.7mJ (off)
Input Type : Standard
Gate Charge : 105nC
Td (on/off) @ 25°C : 46ns/125ns
Test Condition : 600V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 180ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Availability: 34 in stock
