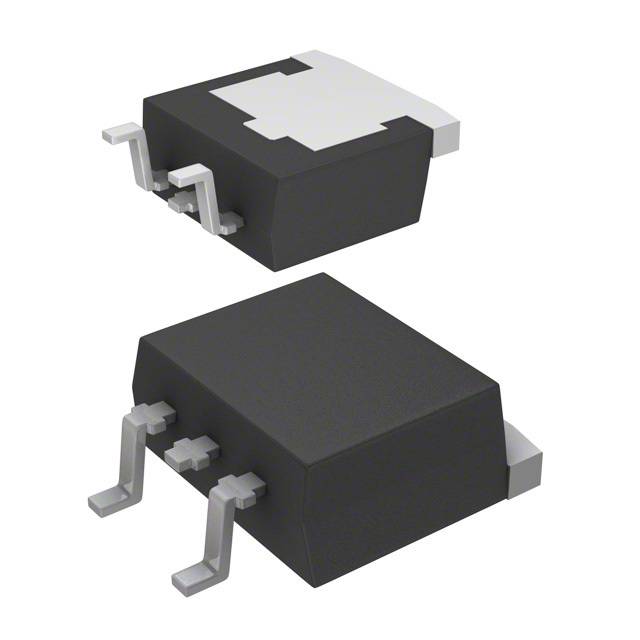

H7N1002LS-E
H7N1002LS-E
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 75A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 10 mOhm @ 37.5A, 10V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 155nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 9700pF @ 10V
FET Feature : -
Power Dissipation (Max) : 100W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 4-LDPAK
Package / Case : SC-83
Availability: 100 in stock
