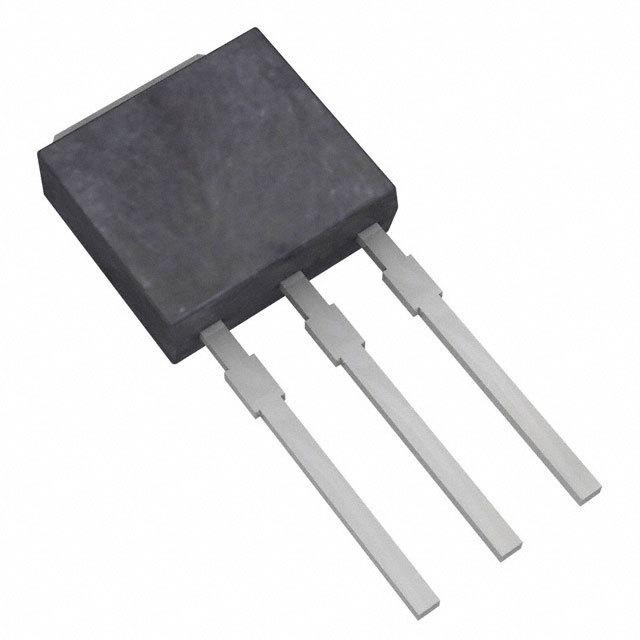

2SK3813-AZ
2SK3813-AZ
Manufacturer : Renesas Electronics America
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 60A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5.3 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 96nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 5500pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1W (Ta), 84W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-251 (MP-3)
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Availability: 100 in stock
