2SK3430-AZ
2SK3430-AZ
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Last Time Buy
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4V, 10V
Rds On (Max) @ Id, Vgs : 7.3 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 50nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2800pF @ 10V
FET Feature : -
Power Dissipation (Max) : 1.5W (Ta), 84W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole

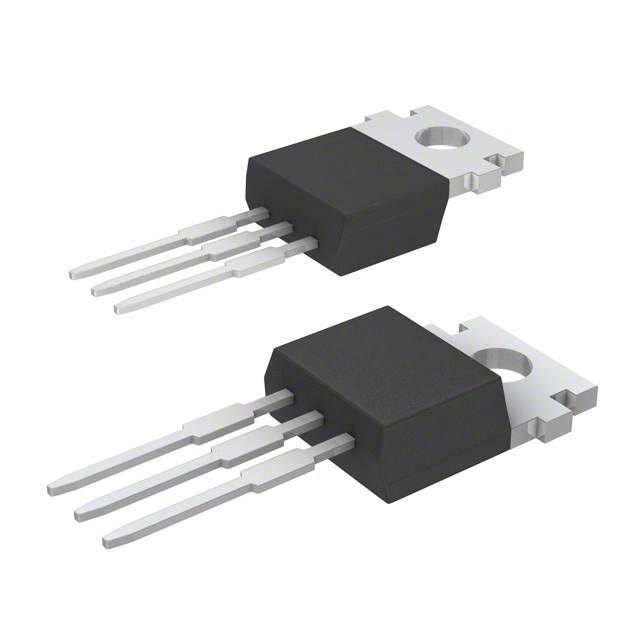

Supplier Device Package : TO-220AB
Package / Case : TO-220-3
Availability: 100 in stock
