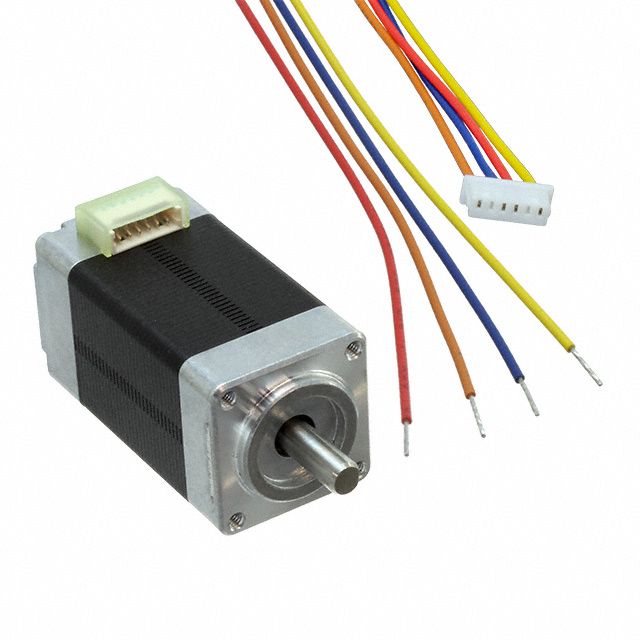

08PM-K139BSTDCN
08PM-K139BSTDCN
Manufacturer : NMB Technologies Corporation
Series : 08PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.1 / 36
Size / Dimension : Square - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 6.5 Ohms
Features : Flatted Shaft
Availability: 100 in stock
