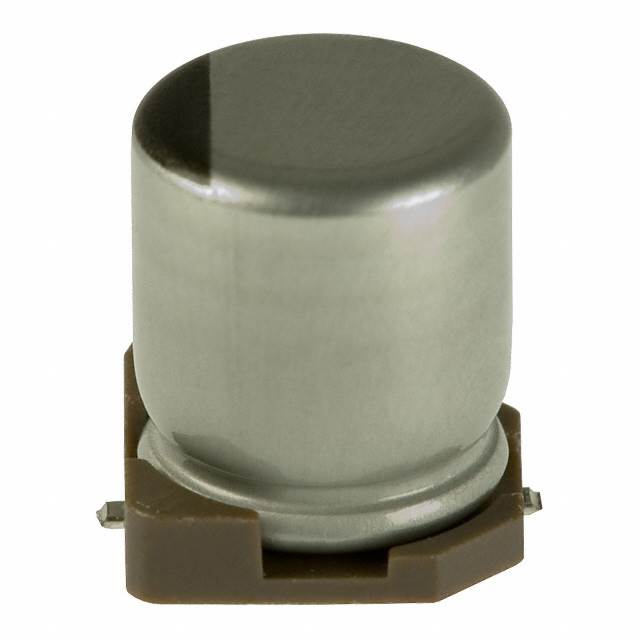

UWT1H470MCL1GS
UWT1H470MCL1GS
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UWT
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 63mA @ 120Hz
Ripple Current @ High Frequency : 94.5mA @ 10kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.303" (7.70mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Availability: 306877 in stock
