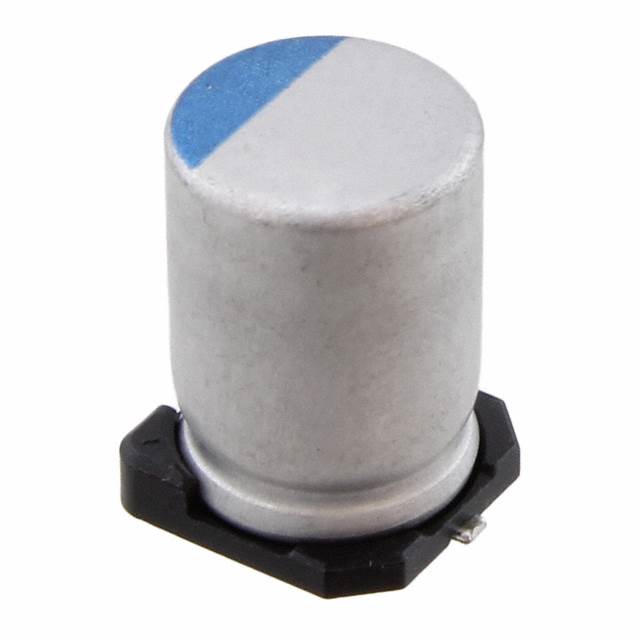

PCX1V560MCL1GS
PCX1V560MCL1GS
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 33 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Availability: 3385 in stock
