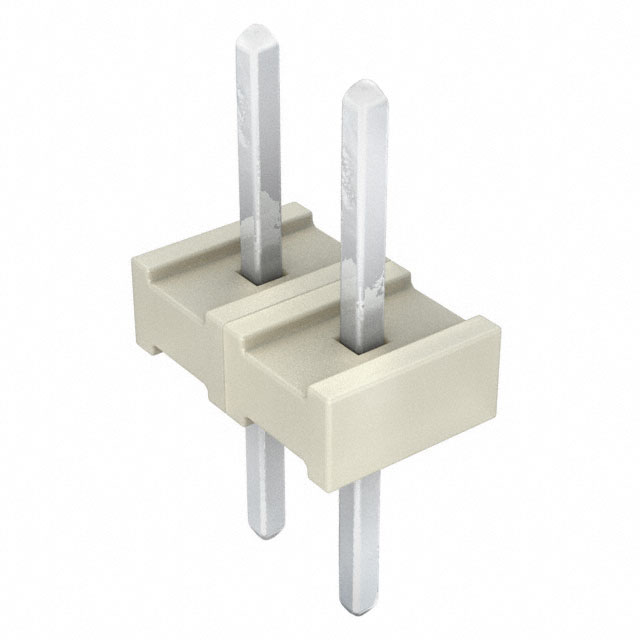

0010081021
0010081021
Manufacturer : Molex, LLC
Packaging : Bulk
Series : KK 3003
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.200" (5.08mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.470" (11.94mm)
Contact Length - Post : 0.155" (3.94mm)
Overall Contact Length : 0.750" (19.05mm)
Insulation Height : 0.125" (3.18mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA), Nylon
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Availability: 14038 in stock
