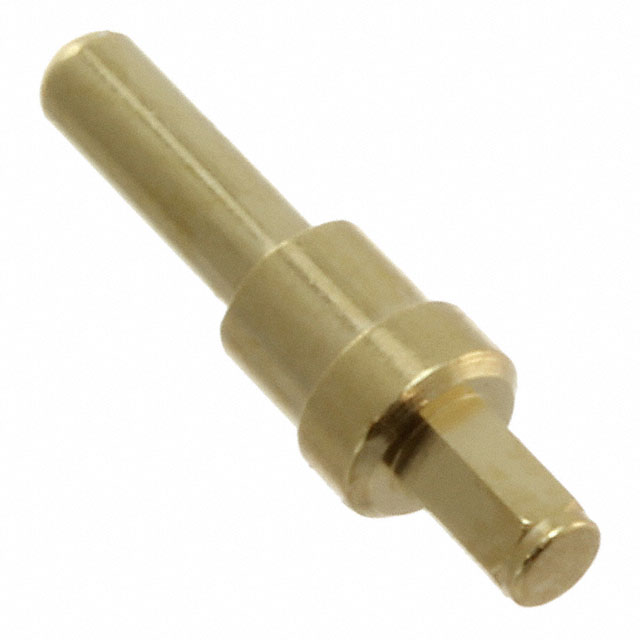

6035-0-00-15-00-00-03-0
6035-0-00-15-00-00-03-0
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6035
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Flanged, Pin Retention
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : 0.067" (1.70mm) Hex
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.419" (10.64mm)
Flange Diameter : 0.113" (2.87mm)
Mounting Hole Diameter : 0.068" (1.73mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Availability: 1287 in stock
