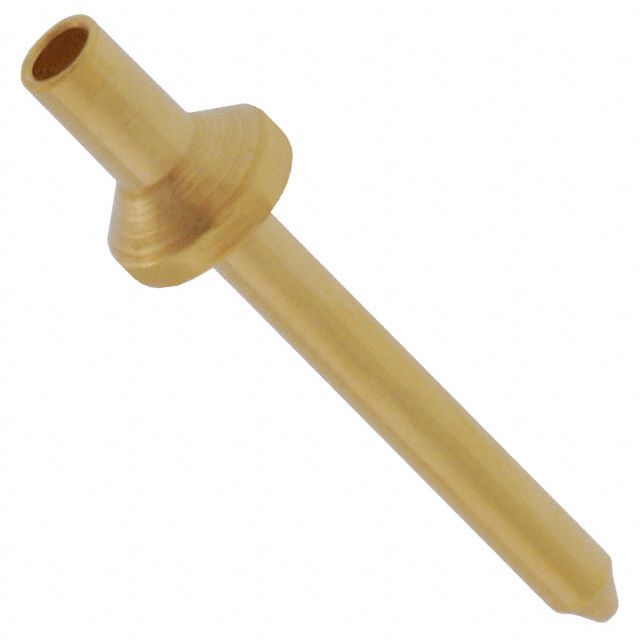

3117-1-00-21-00-00-08-0
3117-1-00-21-00-00-08-0
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3117
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.047" (1.19mm)
Length - Overall : 0.260" (6.60mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)
Availability: 2838 in stock
