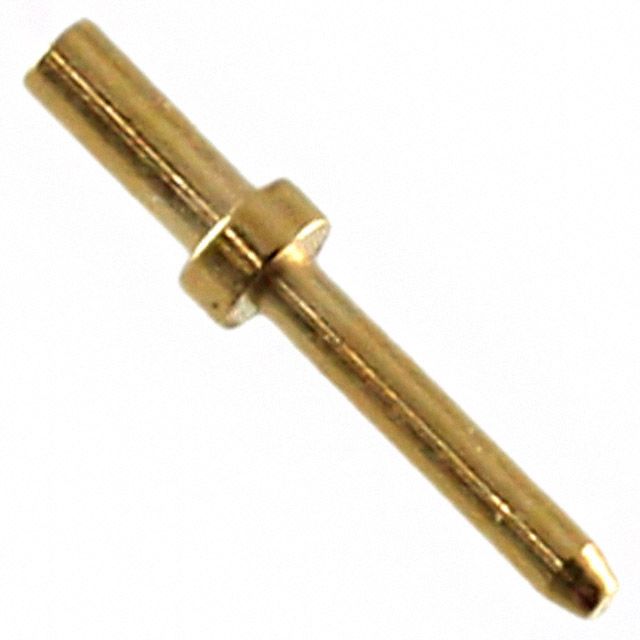

3114-2-00-15-00-00-08-0
3114-2-00-15-00-00-08-0
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3114
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.252" (6.40mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Availability: 31184 in stock
