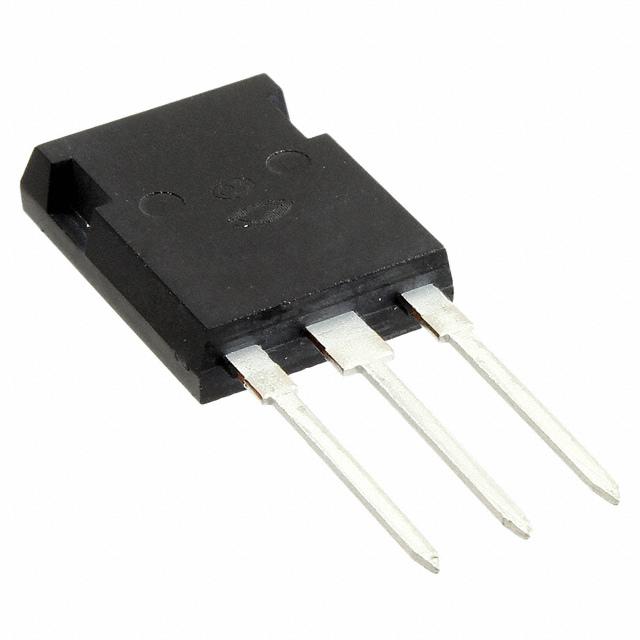

APT20GF120BRDQ1G
APT20GF120BRDQ1G
Manufacturer : Microsemi Corporation
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 64A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 15A
Power - Max : 200W
Switching Energy : 895µJ (on), 840µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 10ns/120ns
Test Condition : 800V, 15A, 4.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 [B]
Availability: 100 in stock
