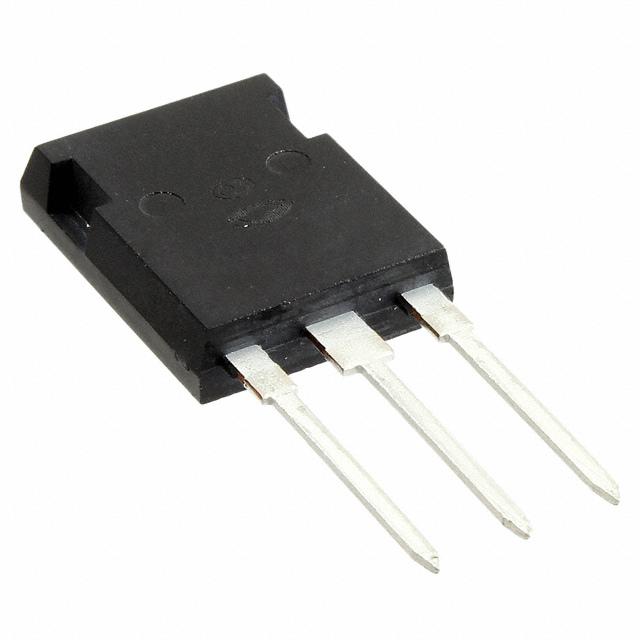

APT200GN60B2G
APT200GN60B2G
Manufacturer : Microsemi Corporation
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 283A
Current - Collector Pulsed (Icm) : 600A
Vce(on) (Max) @ Vge, Ic : 1.85V @ 15V, 200A
Power - Max : 682W
Switching Energy : 13mJ (on), 11mJ (off)
Input Type : Standard
Gate Charge : 1180nC
Td (on/off) @ 25°C : 50ns/560ns
Test Condition : 400V, 200A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : -
Availability: 33 in stock
