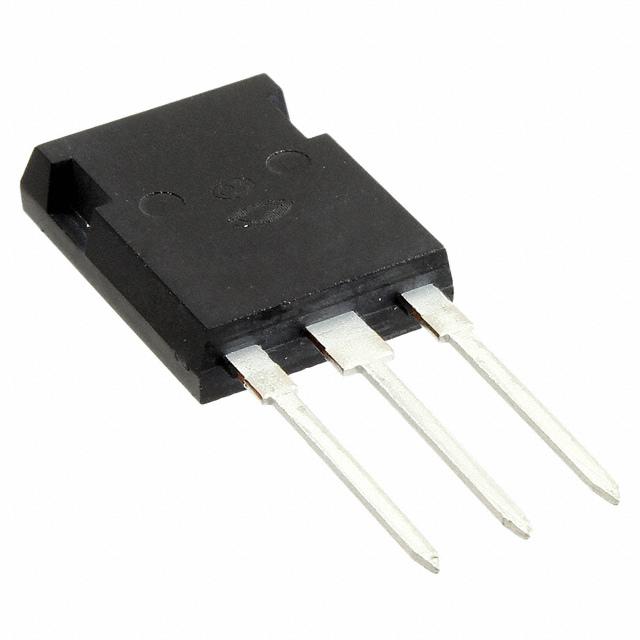

APT15GT120BRG
APT15GT120BRG
Manufacturer : Microsemi Corporation
Packaging : Tube
Series : Thunderbolt IGBT®
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 15A
Power - Max : 250W
Switching Energy : 585µJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 105nC
Td (on/off) @ 25°C : 10ns/85ns
Test Condition : 800V, 15A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 [B]
Availability: 30 in stock
