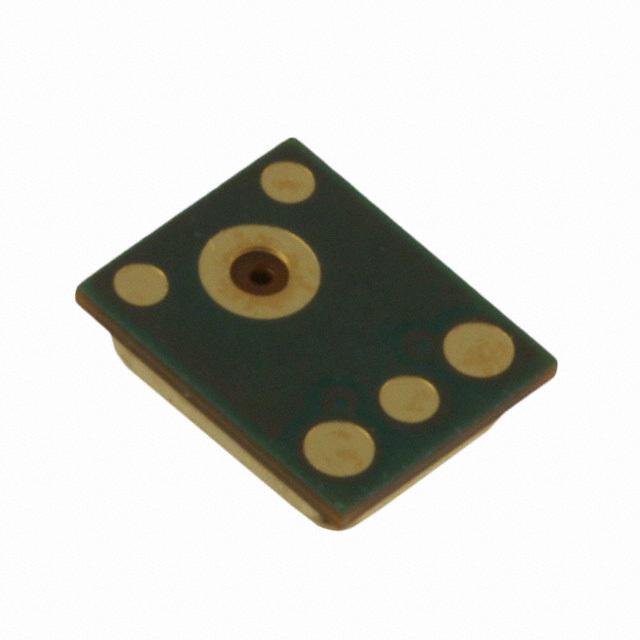

SPU0410LR5H-QB-7
SPU0410LR5H-QB-7
Manufacturer : Knowles
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SiSonic™
Part Status : Active
Type : MEMS (Silicon)
Output Type : Analog
Direction : Omnidirectional
Frequency Range : 100Hz ~ 80kHz
Sensitivity : -38dB ±3dB @ 94dB SPL
S/N Ratio : 63dB
Impedance : 400 Ohms
Voltage - Rated : -
Voltage Range : 1.5V ~ 3.6V
Current - Supply : 160µA
Port Location : Bottom
Ratings : -
Termination : Solder Pads
Size / Dimension : 0.148" L x 0.118" W (3.76mm x 3.00mm)
Height (Max) : 0.047" (1.20mm)
Shape : Rectangular
Availability: 77137 in stock
