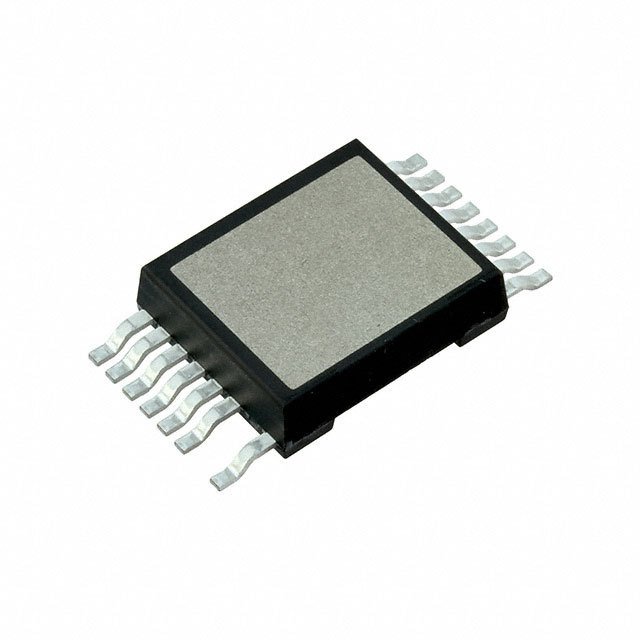

IXRFSM18N50
IXRFSM18N50
Manufacturer : IXYS-RF
Packaging : Tube
Series : SMPD
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 19A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 20V
Rds On (Max) @ Id, Vgs : 340 mOhm @ 9.5A, 20V
Vgs(th) (Max) @ Id : 6.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 42nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2250pF @ 400V
FET Feature : -
Power Dissipation (Max) : 835W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 16-SMPD
Package / Case : 16-BESOP (0.790", 20.11mm Width), 15 Leads, Exposed Pad
