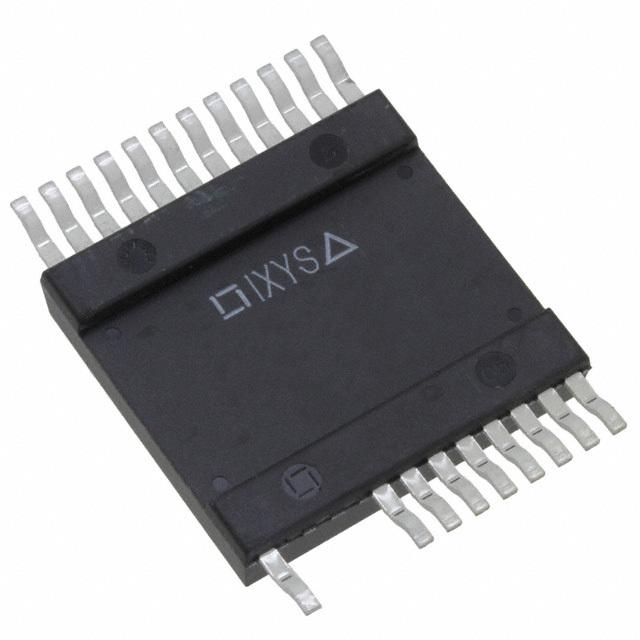

MMIX1X200N60B3H1
MMIX1X200N60B3H1
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 175A
Current - Collector Pulsed (Icm) : 1000A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 100A
Power - Max : 520W
Switching Energy : 2.85mJ (on), 2.9mJ (off)
Input Type : Standard
Gate Charge : 315nC
Td (on/off) @ 25°C : 48ns/160ns
Test Condition : 360V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 24-PowerSMD, 21 Leads
Supplier Device Package : 24-SMPD
Availability: 75 in stock
