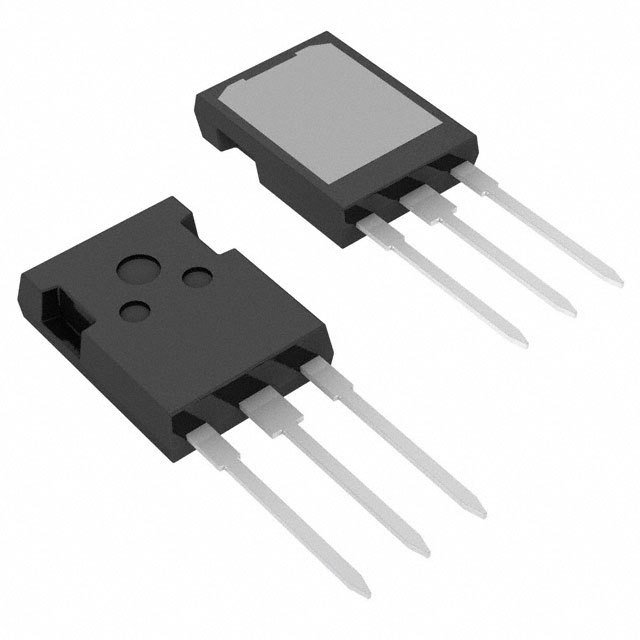

IXYX120N120C3
IXYX120N120C3
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 700A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 120A
Power - Max : 1500W
Switching Energy : 6.75mJ (on), 5.1mJ (off)
Input Type : Standard
Gate Charge : 412nC
Td (on/off) @ 25°C : 35ns/176ns
Test Condition : 600V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Availability: 313 in stock
