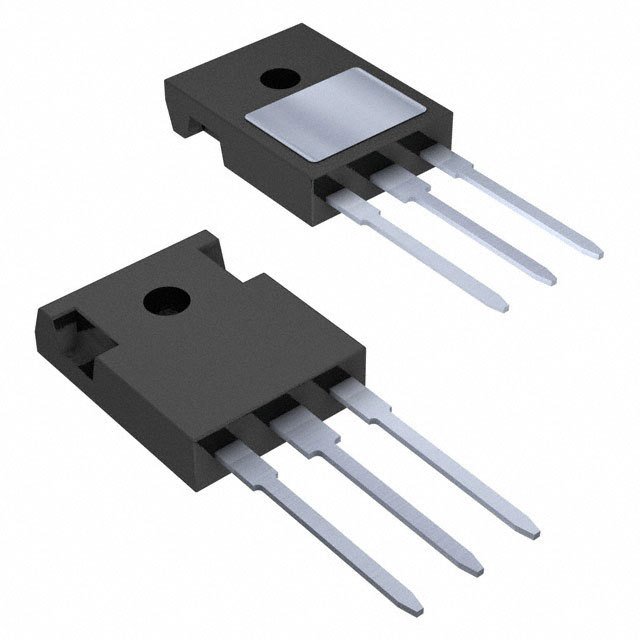

IXYJ20N120C3D1
IXYJ20N120C3D1
Manufacturer : IXYS
Packaging : Tube
Series : GenX3™ XPT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 21A
Current - Collector Pulsed (Icm) : 84A
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 20A
Power - Max : 105W
Switching Energy : 1.3mJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 20ns/90ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : ISO247™
Availability: 63 in stock
