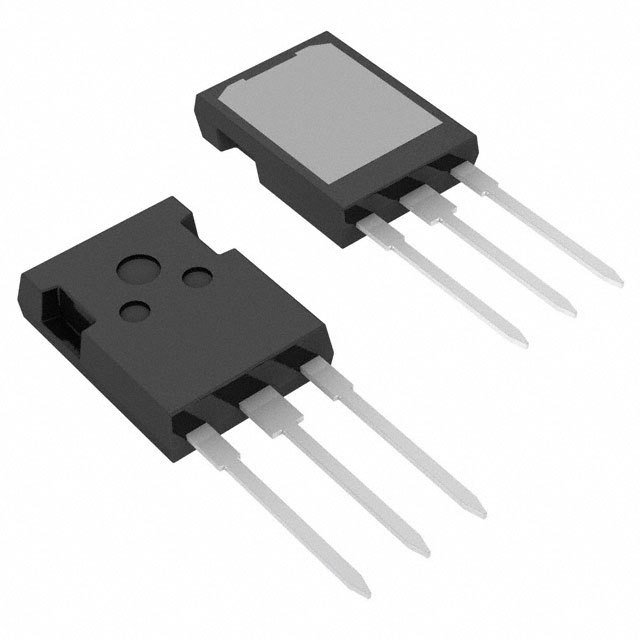

IXXX110N65B4H1
IXXX110N65B4H1
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 240A
Current - Collector Pulsed (Icm) : 630A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 110A
Power - Max : 880W
Switching Energy : 2.2mJ (on), 1.05mJ (off)
Input Type : Standard
Gate Charge : 183nC
Td (on/off) @ 25°C : 38ns/156ns
Test Condition : 400V, 55A, 2 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PLUS247™3
Availability: 100 in stock
