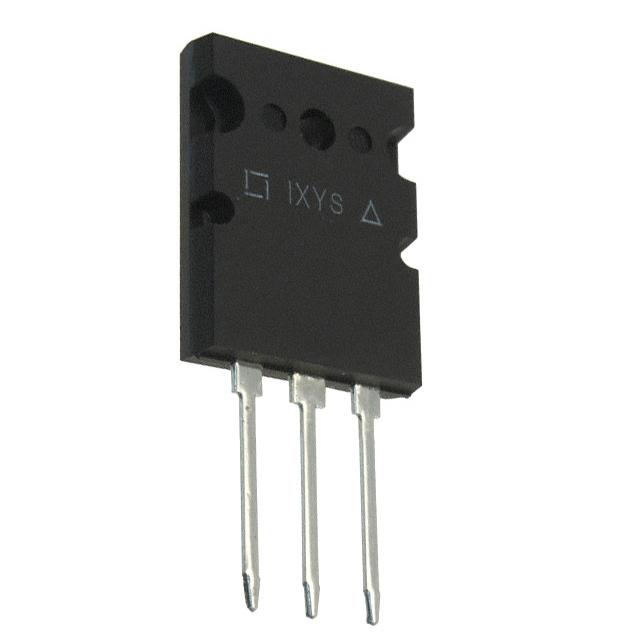

IXXK200N65B4
IXXK200N65B4
Manufacturer : IXYS
Packaging : Tube
Series : GenX4™ XPT™
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 370A
Current - Collector Pulsed (Icm) : 1000A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 160A
Power - Max : 1150W
Switching Energy : 4.4mJ (on), 2.2mJ (off)
Input Type : Standard
Gate Charge : 553nC
Td (on/off) @ 25°C : 62ns/245ns
Test Condition : 400V, 100A, 1 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264 (IXXK)
Availability: 290 in stock
