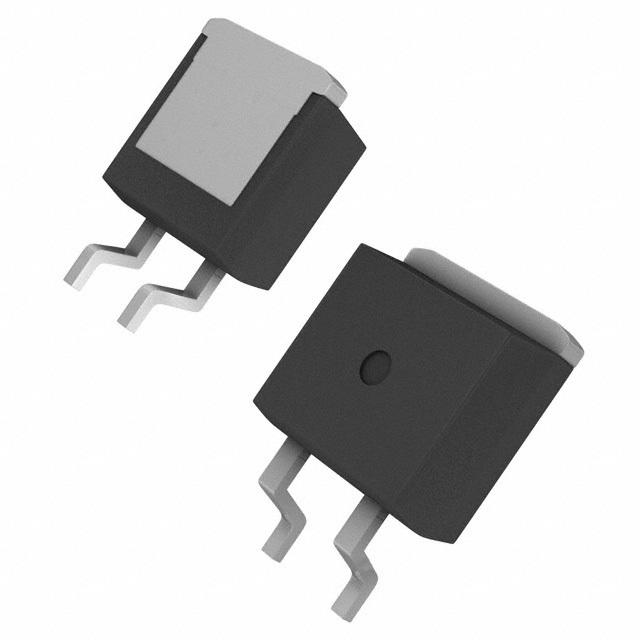

IXSA20N60B2D1
IXSA20N60B2D1
Manufacturer : IXYS
Packaging : Bulk
Series : -
Part Status : Obsolete
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 16A
Power - Max : 190W
Switching Energy : 380µJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 30ns/116ns
Test Condition : 480V, 16A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 AA (IXSA)
Availability: 100 in stock
