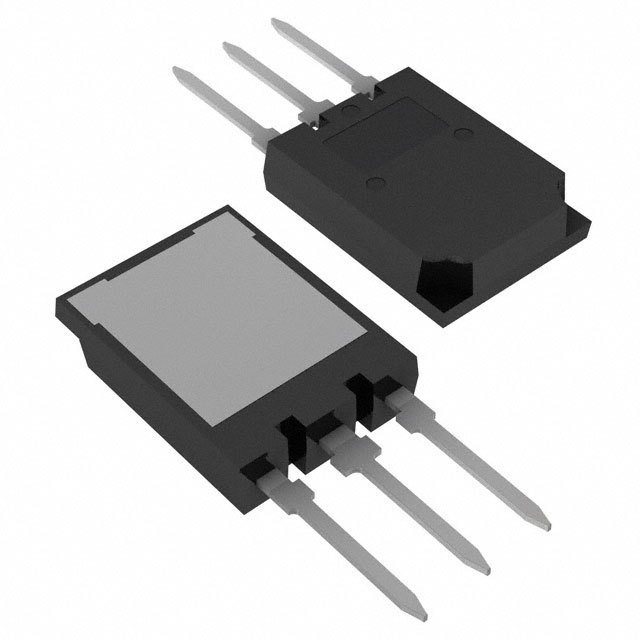

AIKQ100N60CTXKSA1
AIKQ100N60CTXKSA1
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 400A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 100A
Power - Max : 714W
Switching Energy : 3.1mJ (on), 2.5mJ (off)
Input Type : Standard
Gate Charge : 610nC
Td (on/off) @ 25°C : 30ns/290ns
Test Condition : 400V, 100A, 3.6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3-46
Availability: 100 in stock
