AIGW40N65H5XKSA1
AIGW40N65H5XKSA1
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole

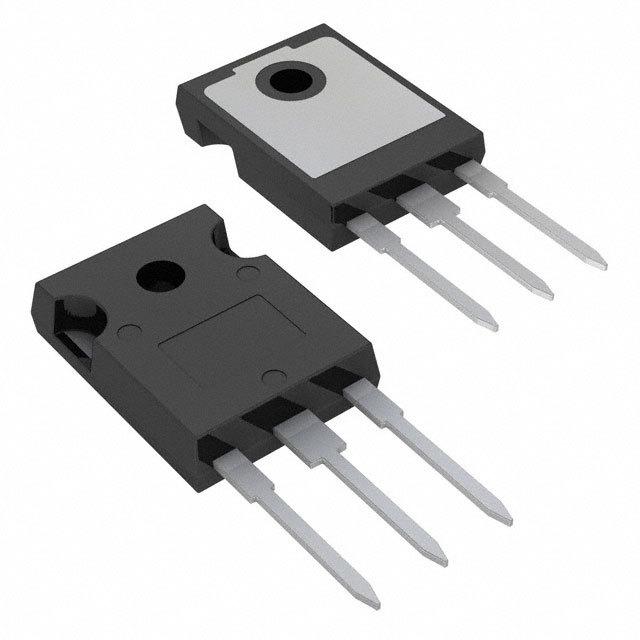

Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
