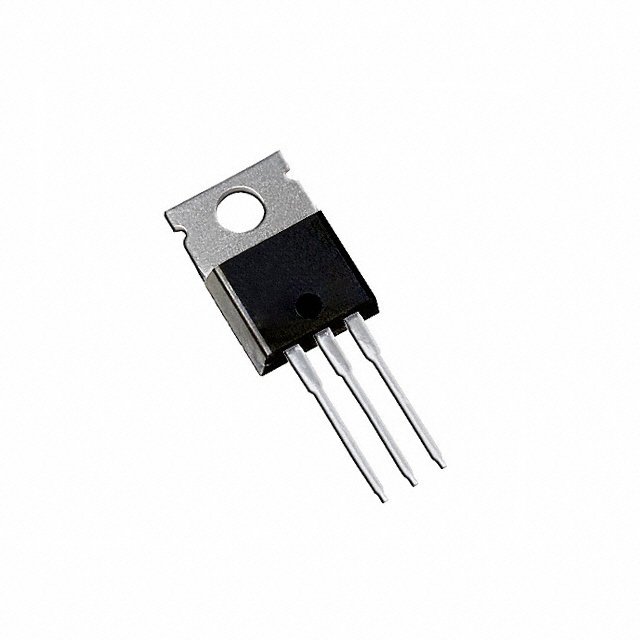

64-8016
64-8016
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.1 mOhm @ 75A, 10V
Vgs(th) (Max) @ Id : 2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 110nC @ 5V
Vgs (Max) : ±16V
Input Capacitance (Ciss) (Max) @ Vds : 5080pF @ 25V
FET Feature : -
Power Dissipation (Max) : 230W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220AB
Package / Case : TO-220-3
Availability: 100 in stock
