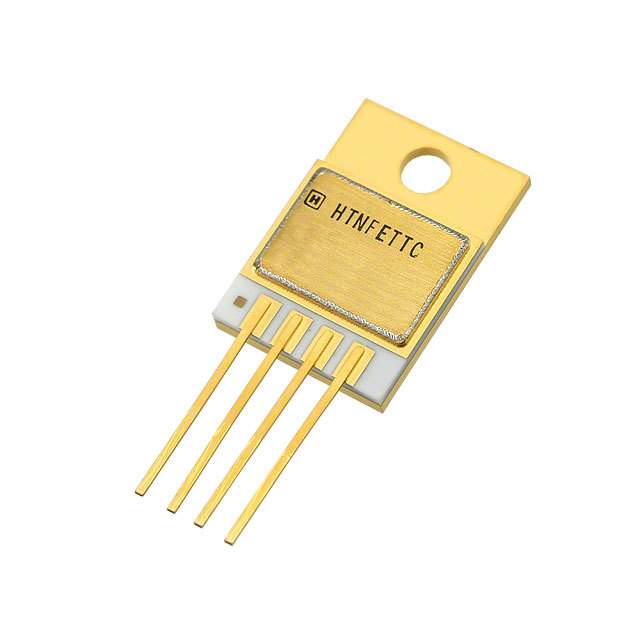

HTNFET-T
HTNFET-T
Manufacturer : Honeywell Aerospace
Packaging : Bulk
Series : HTMOS™
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 55V
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 400 mOhm @ 100mA, 5V
Vgs(th) (Max) @ Id : 2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 4.3nC @ 5V
Vgs (Max) : 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 28V
FET Feature : -
Power Dissipation (Max) : 50W (Tj)
Operating Temperature : -55°C ~ 225°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : 4-Power Tab
Package / Case : 4-SIP
