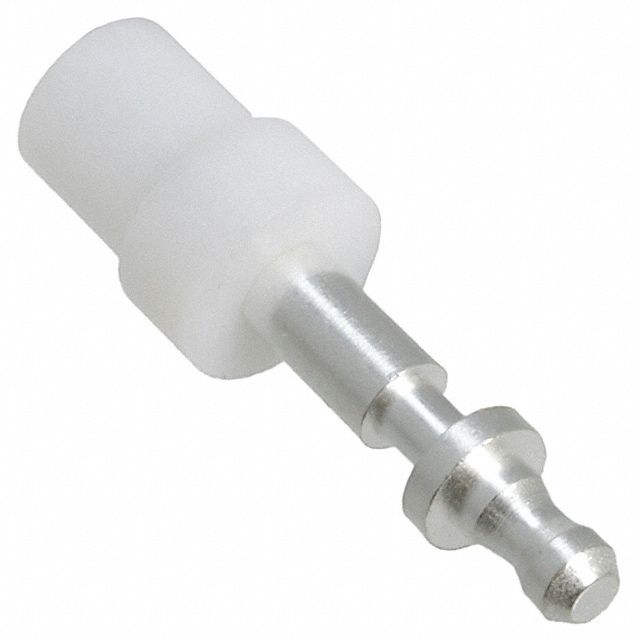

W2222-00
W2222-00
Manufacturer : Harwin Inc.
Series : -
Part Status : Last Time Buy
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.256" (6.50mm)
Length - Below Flange : 0.303" (7.70mm)
Length - Overall : 0.560" (14.22mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.156" (3.96mm)
Board Thickness : 0.028" ~ 0.063" (0.72mm ~ 1.60mm)
Contact Material : Brass
Contact Finish : Silver
Contact Finish Thickness : 137.8µin (3.50µm)
Insulation : Insulated
Availability: 3162 in stock
