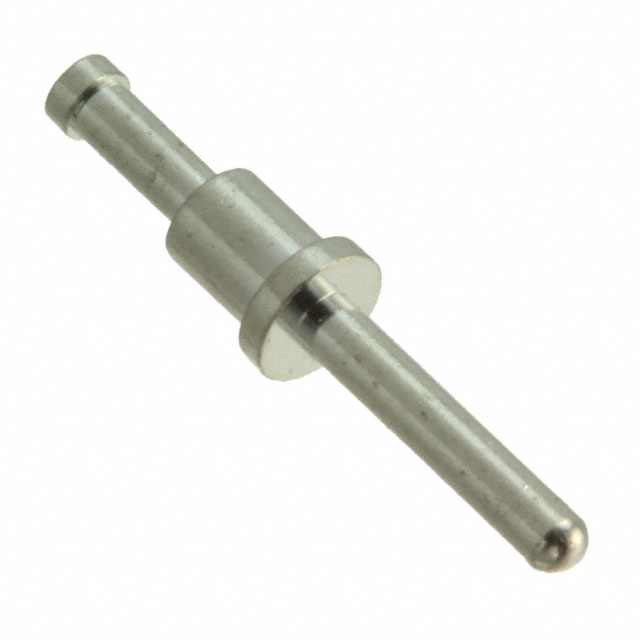

H9051-01
H9051-01
Manufacturer : Harwin Inc.
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.207" (5.26mm)
Length - Overall : 0.457" (11.61mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : 0.050" (1.27mm)
Staking Side OD : 0.070" ~ 0.072" (1.78mm ~ 1.83mm)
Staking Side ID : -
Mounting Hole Diameter : 0.072" ~ 0.074" (1.83mm ~ 1.87mm)
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Availability: 9134 in stock
