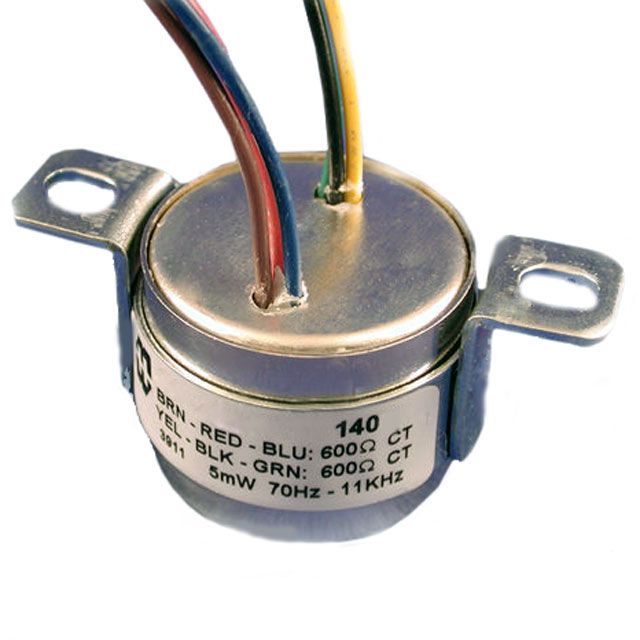

140MEX
140MEX
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 8.13:1
Impedance - Primary (Ohms) : 100k
Impedance - Secondary (Ohms) : 1.5k
DC Resistance (DCR) - Primary : 5.43 kOhm
DC Resistance (DCR) - Secondary : 159 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1.2dB Typ
Return Loss : 30dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
Availability: 45 in stock
