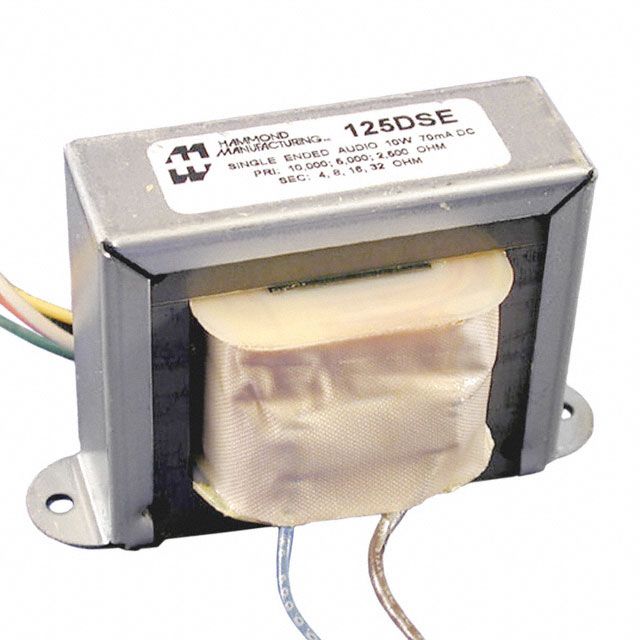

125DSE
125DSE
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 125SE
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 2.5k ~ 10k
Impedance - Secondary (Ohms) : 4 ~ 32
DC Resistance (DCR) - Primary : 115 Ohm
DC Resistance (DCR) - Secondary : 590 mOhm
Transformer Type : General Purpose
Frequency Range : 100Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 1500V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 10W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 2.100" W (101.60mm x 53.34mm)
Height - Seated (Max) : 2.630" (66.80mm)
Termination Style : Wire Leads
