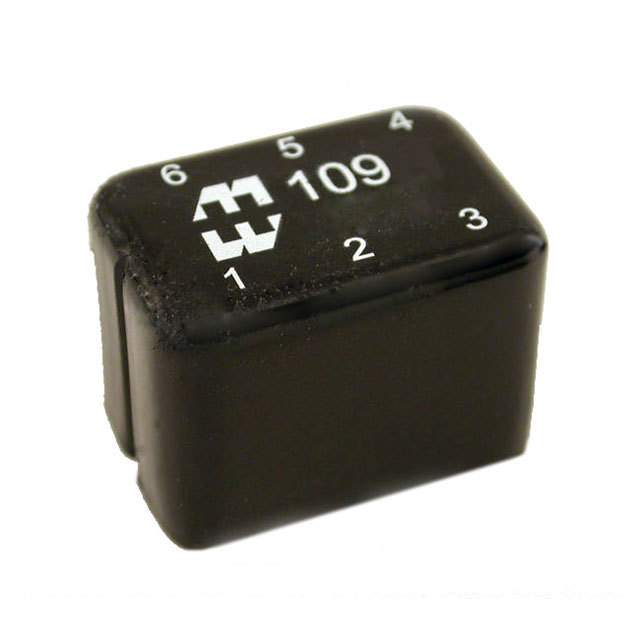

109T
109T
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 109
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 10kCT
DC Resistance (DCR) - Primary : 700 Ohm
DC Resistance (DCR) - Secondary : 1 kOhm
Transformer Type : Miniature Epoxy Potted
Frequency Range : 300Hz ~ 50kHz
Frequency Response : ±1.5dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 2W
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.315" L x 0.930" W (33.40mm x 23.62mm)
Height - Seated (Max) : 0.920" (23.37mm)
Termination Style : PC Pin
Availability: 10 in stock
