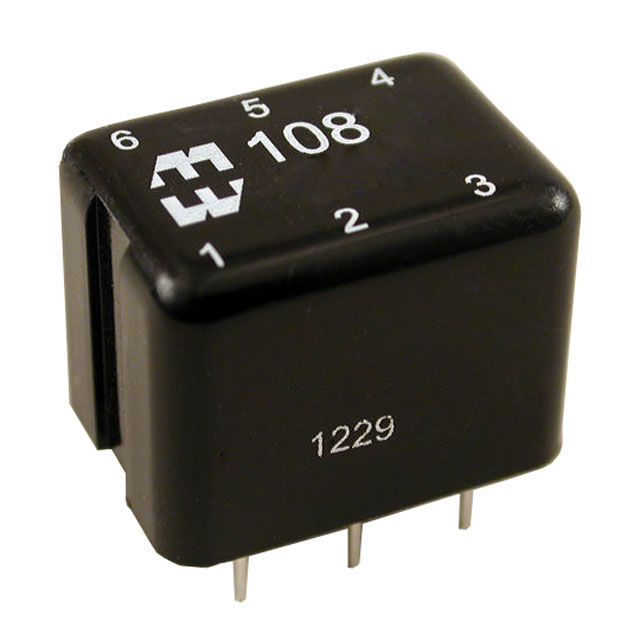

108J
108J
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 108
Part Status : Active
Turns Ratio - Primary:Secondary : 1.29:1
Impedance - Primary (Ohms) : 1kCT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 88 Ohm
DC Resistance (DCR) - Secondary : 66 Ohm
Transformer Type : Miniature Epoxy Potted
Frequency Range : 300Hz ~ 50kHz
Frequency Response : ±1.5dB
Voltage - Isolation : 100VRMS
Insertion Loss : -
Return Loss : -
Power Level : 150mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.030" L x 0.770" W (26.16mm x 19.56mm)
Height - Seated (Max) : 0.770" (19.56mm)
Termination Style : PC Pin
