GPA040A120L-FD
GPA040A120L-FD
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 480W
Switching Energy : 5.3mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 480nC
Td (on/off) @ 25°C : 55ns/200ns
Test Condition : 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 200ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole

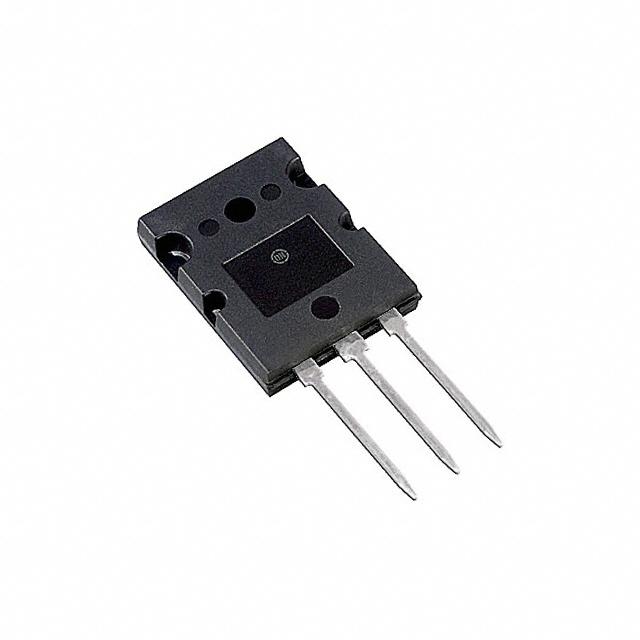

Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Availability: 2198 in stock
