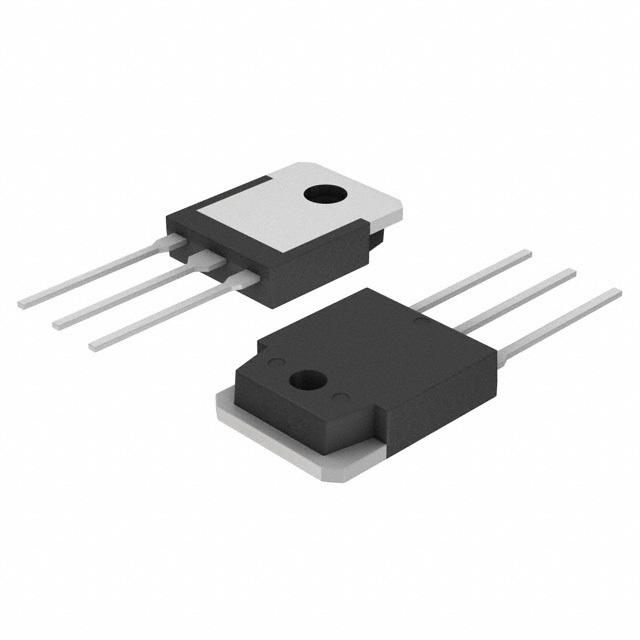

GPA020A135MN-FD
GPA020A135MN-FD
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 20A
Power - Max : 223W
Switching Energy : 2.5mJ (on), 760µJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : 25ns/175ns
Test Condition : 600V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 425ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3
Supplier Device Package : TO-3P
Availability: 31 in stock
