EPC2050ENGRT
EPC2050ENGRT
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 350V
Current - Continuous Drain (Id) @ 25°C : 6.3A
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 65 mOhm @ 6A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs : 4.3nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 505pF @ 280V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount

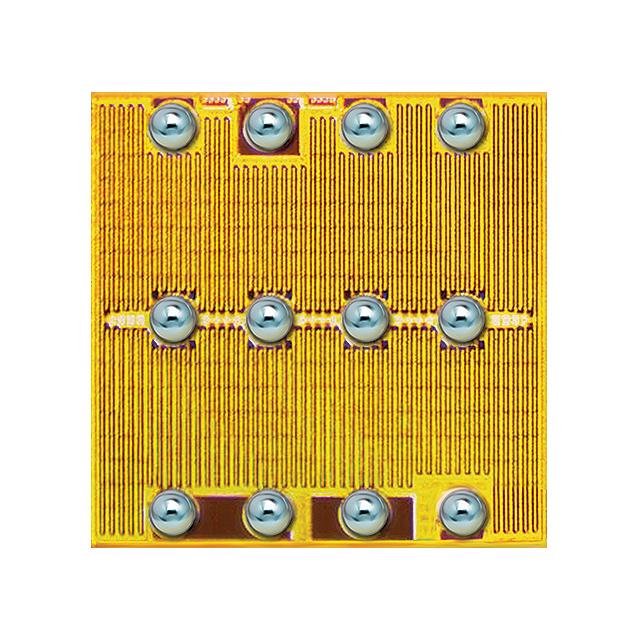

Supplier Device Package : Die Outline (12-Solder Bar)
Package / Case : Die
Availability: 100 in stock
