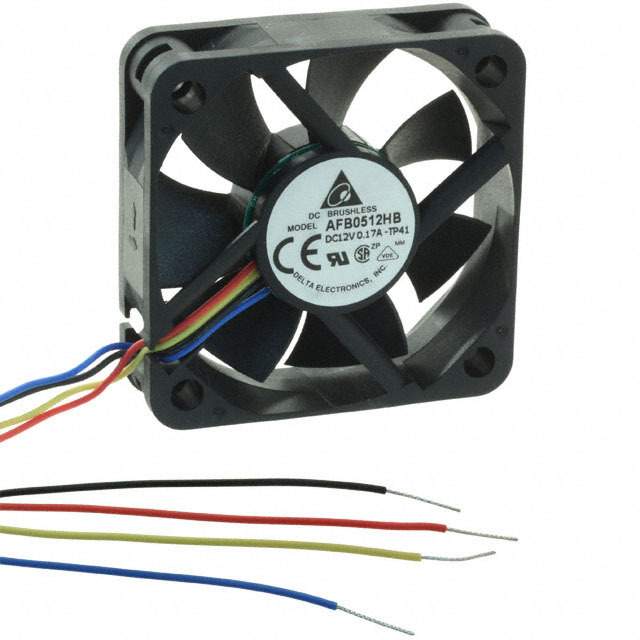

AFB0512HB-TP41
AFB0512HB-TP41
Manufacturer : Delta Electronics
Series : AFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 34.0 dB(A)
Power (Watts) : 1.44W
RPM : 6300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)
