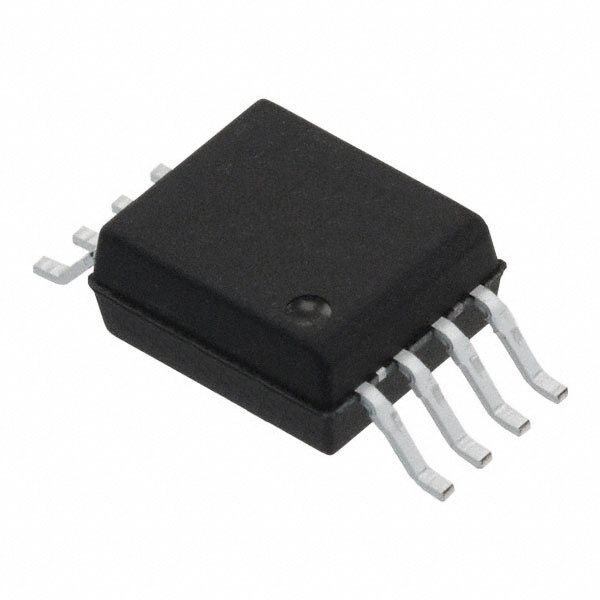

ACPL-K24L-000E
ACPL-K24L-000E
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 25kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 5MBd
Propagation Delay tpLH / tpHL (Max) : 250ns, 250ns
Rise / Fall Time (Typ) : 11ns, 11ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.268", 6.81mm Width)
Supplier Device Package : 8-SO
Availability: 100 in stock
