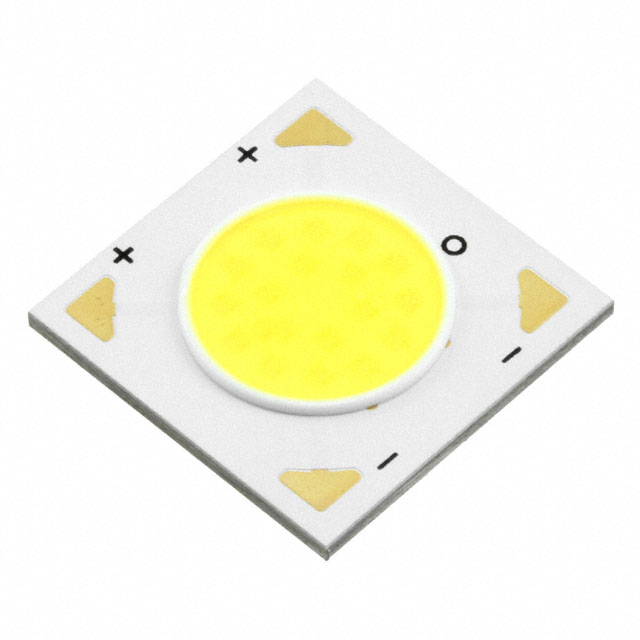

BXRE-27E1000-B-23
BXRE-27E1000-B-23
Manufacturer : Bridgelux
Packaging : Tube
Series : V Series™
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1022 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 25.7V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : -
Size / Dimension : 15.80mm L x 15.80mm W
Height : 1.70mm
Light Emitting Surface (LES) : 9.90mm Diameter
Lens Type : Flat
Availability: 350 in stock
