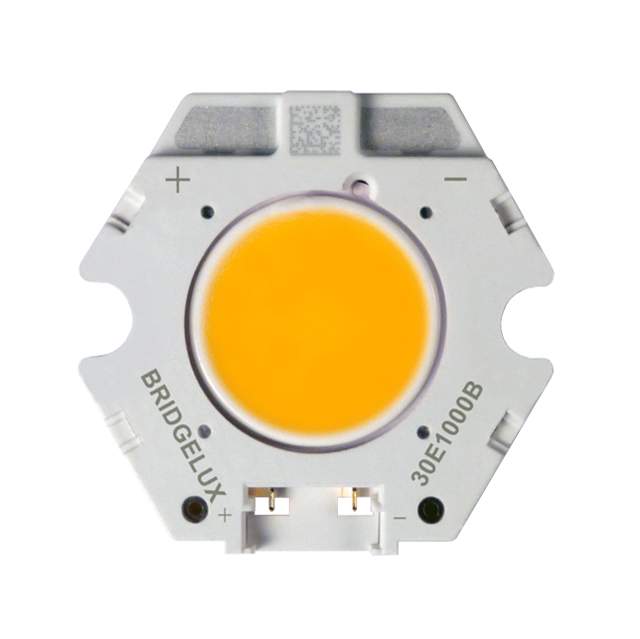

BXRC-50G1000-B-04
BXRC-50G1000-B-04
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® 10 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1090 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 26.7V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 90
Viewing Angle : 120°
Features : -
Size / Dimension : 19.00mm L x 20.00mm W
Height : 1.90mm
Light Emitting Surface (LES) : 9.90mm Diameter
Lens Type : Flat
Availability: 100 in stock
