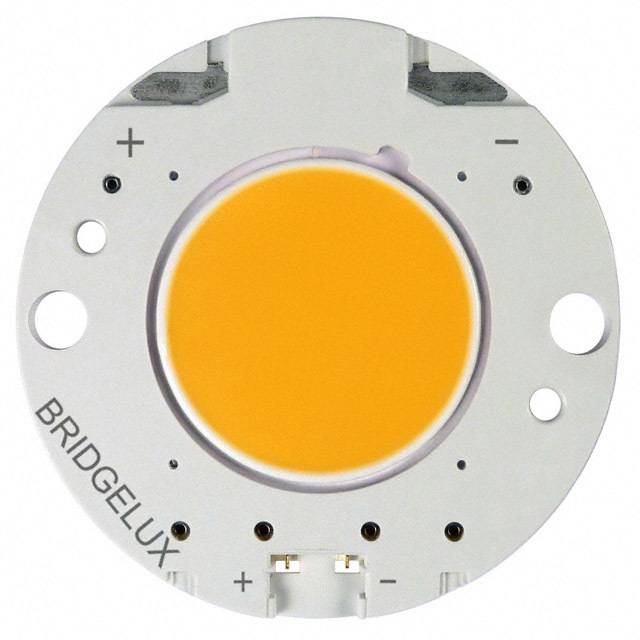

BXRC-50E4000-F-Z4
BXRC-50E4000-F-Z4
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® 18 Array
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 4-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 3696 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 28.6V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 2.1A
CRI (Color Rendering Index) : 80
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 36.20mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 18.40mm Diameter
Lens Type : Flat
Availability: 100 in stock
