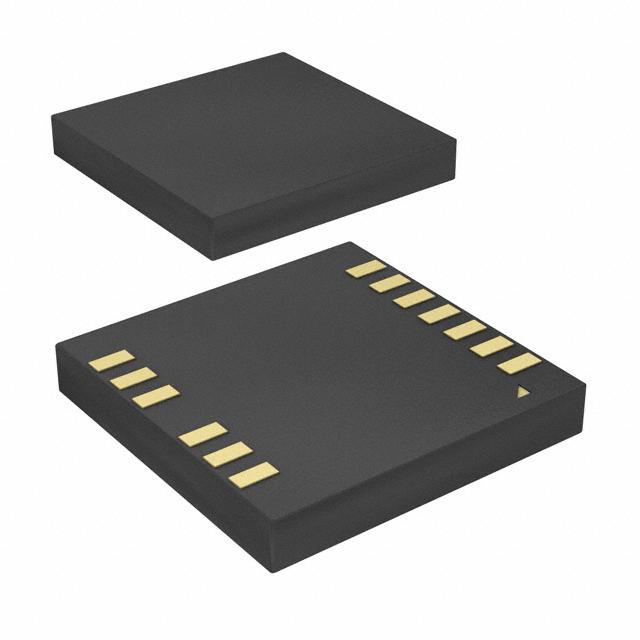

ADUM7223BCCZ
ADUM7223BCCZ
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 62ns, 62ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 12ns, 12ns
Current - Output High, Low : -
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 4.5 V ~ 18 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 13-VFLGA
Supplier Device Package : 13-LGA (5x5)
Approvals : -
Availability: 1298 in stock
