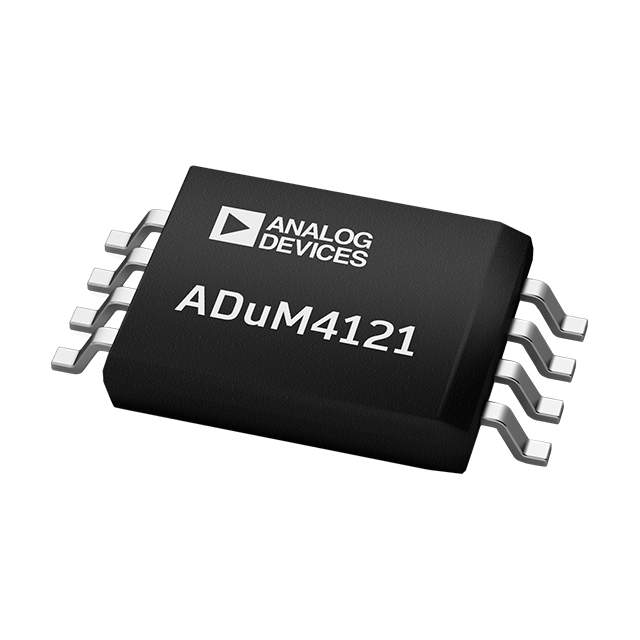

ADUM4121BRIZ
ADUM4121BRIZ
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : iCoupler®
Part Status : Active
Technology : Magnetic Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 150kV/µs
Propagation Delay tpLH / tpHL (Max) : 42ns, 53ns
Pulse Width Distortion (Max) : 13ns
Rise / Fall Time (Typ) : 18ns, 18ns
Current - Output High, Low : -
Current - Peak Output : 2.3A
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Voltage - Supply : 7.5 V ~ 35 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOIC-IC
Approvals : CSA, UR, VDE
Availability: 170 in stock
